Item
|
Descriptions
|
Item
|
Descriptions
|
|
|

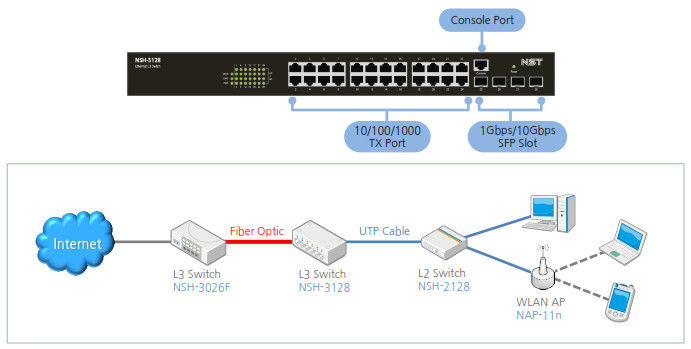

Interfaces
|
• 24-Port 10/100/1000Base-T(RJ-45)
• 4-Slot 10GBase-X or 1000Base-X SFP+
|
L3 Features
|
• Static Routing
• OSPF v2, BGPv4, RIP v1/v2, IS-IS, VRRP
• Multiple Default Gateway
|
|
|
Console Port
|
RJ-45 to RS-232
|
|
|
IPv6
|
• Dual stack (IPv4/IPv6)
• Core stack IPv6 Specification/ ICMPv6
Neighbor Discovery for IPv6 IPv6 Stateless
Address Auto-configuration
• DHCPv6 (Server/Relay/Snooping)
• MLD Snooping v1/v2, MLD v1/v2, PIM-SM
for IPv6
• OSPFv3, BGP4+, Static Routing
• QoS and Security for IPv6
• Management for IPv6
|
|
|
Flash
|
256MB
|
|
|
Memory
|
512MB SDRAM
|
|
|
Performance
|
• 130Gbps Switching Fabric, 96.72Mpps
Throughput
• 32K MAC address, 4K 802.1Q VLAN
• 8K L3 table(IPv4), 4K L3 table(IPv6)
• 12K LPM(IPv4), 6K LPM(IPv6)
• 1K multicast(L2)
• 4K multicast(L3/IPv4), 2K multicast(L3/IPv6)
|
|
|
Management
|
• CLI(serial / Telnet)
• Dual OS
• Remote OS Upgrade (FTP/ TFTP)
• Multiple Configuration Files
• Remote Configuration Upgrade (FTP/TFTP)
• Port/Protocol Mirroring
• SNMP v1/v2
• RMON History
• Syslog
• TACACS+, RADIUS, SSH
• DHCP Server, Relay Agent with option82
• Ethernet OAM
• Packet-based Time Synchronization
(IEEE1588)
|
|
|
L2 Features
|
• Jumbo Frame 9KB
• Port-based VLAN, IEEE 802.1q Tag VLAN
• VLAN Stacking (Q-in-Q)
• VLAN Translation
• 802.1p Packet Priority
• Spanning Tree Protocol (STP/RSTP/MSTP)
• 802.3ad Link Aggregation
• Self Loop Detection
|
|
|
Multicast
|
• IGMP v1/v2
• IGMP Snooping
• IGMP Static Join
• IGMP Redundancy Proxy, PIM-SM/SSM
|
|
|
QoS
|
• Classification (L2/L3/L4)
• 4 Queues per Port
• Mark/Remark/Policing
• Traffic Scheduling (SPQ, WRR, DRR)
• Traffic Policing and Shaping
• Rate Limiting
|
|
|
정격전원
|
AC88V~264/ VAC47~63Hz
|
|
|
소비전력
|
Max. 42.5W
|
|
|
크기
|
440(W) * 240(D) * 44(H) mm
|
|
|
무게
|
4.5kg
|
|
|
Security
|
• Storm Control (Broadcast, Multicast, DLF)
• ACL
• NetBIOS, NetBEUI, NBT, CIFS, SSDP, WSDD Filtering
• IP Packet Filtering
• DoS Protection
|
동작온도
|
0°C ~ 50°C
|
|
|
보관온도
|
-40°C ~ 70°C
|
|
|
습도
|
10% ~ 90% (non Condensing)
|
|
|
LED
|
Power1, Power2, Port Speed
|
|
