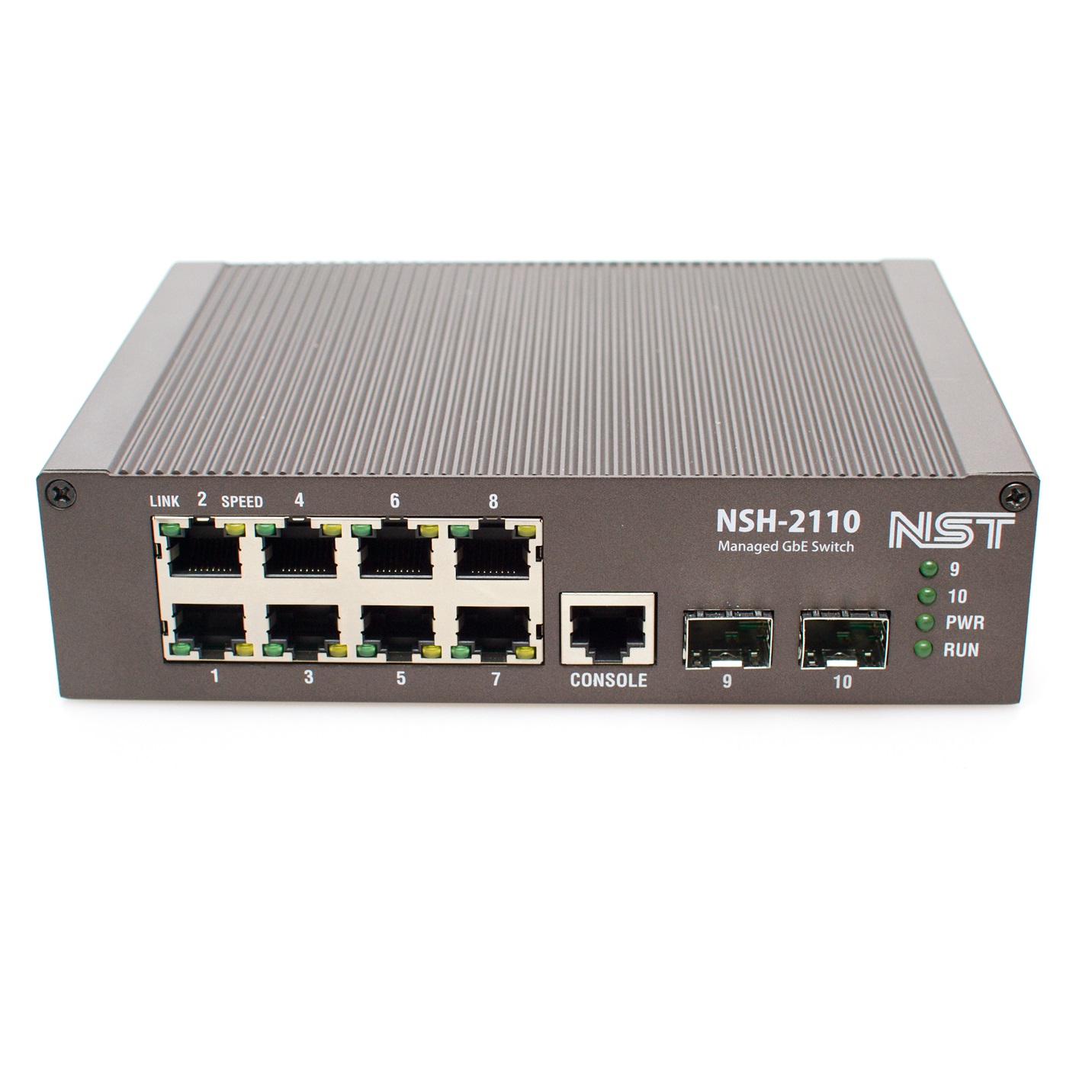

NSH-2110 là thiết bị chuyển mạch Layer hiệu suất cao hỗ trợ 8 cổng 10/100 / 1000Mbps và 2 cổng Gigabit Ethernet uplink.
CÔNG TY TNHH SMARTTECH VIỆT NAM
ĐT/Zalo: 0989964161 - 0326180066
item
Descriptions
Interface
8-Port 10/100/1000Base-T
2-Slot 100Mbps/1Gbps SFP
Console Port
RJ-45 to RS-232
Processor
MIPS32 500MHz
Flash
16MB
Memory
128MB DDR2 SDRAM
Backplane
56Gbps
Flow Control
IEEE 802.3x and Back-Pressure Flow Control
VLAN
Tag-base VLAN (IEEE 802.1Q)
Port-base VLAN, Port and protocol based VLAN
Management
CLI, Telnet, SSH, Web Based management
SNMPv1/v2c/v3, MIB I/II
QoS
8 Physical Queues per Port
Strict Priority(SP) and Weighted Fair Queue(WFQ), Weighted Round Robin(WRR) Packet Scheduling
QoS remarking for 802.1p and DSCP (IPv4/IPv6)
Features
Rate Limit Control
MAC Filtering
Storm Control (BC, Unknown MC, Unknown UC)
Port Mirroring
Link aggregation (IEEE 802.3ad)
STP(IEEE 802.1D), RSTP(IEEE 802.1w), MSTP(IEEE 802.1s)
L2/L3/L4 기반 ACL (DMAC, SMAC, Ether-Type)
IGMP v1/v2/v3 Snooping
Port Security
IEEE 802.1x
IEEE 802.3az Energy Efficient Ethernet (EEE)
Packet Priority (IEEE 802.1p)
BPDU Flood /Drop (Bridge Protocol Data Unit)
Auto MDI / MDIX
Power
AC90~250V, 50Hz/60Hz
DC 5V 2A
Power Consumption
Max. 8W
Size
168(W) x 126(D) x 44(H) mm
Weight
0.7kg
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-40°C ~ 80°C
Humidity
10% ~ 90%(non Condensing)
LED
Power, Link/Act, Speed
