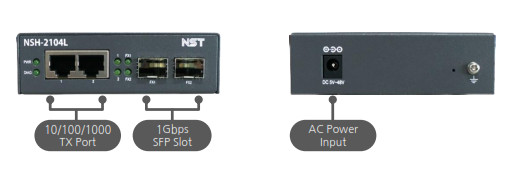

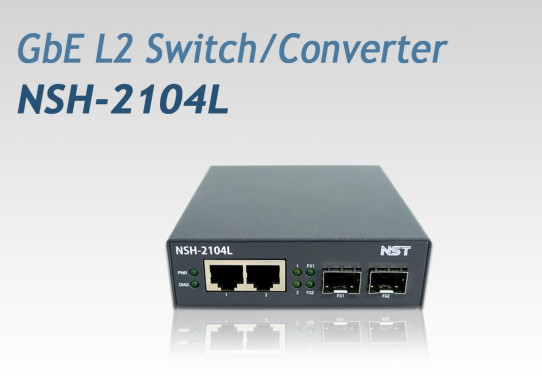

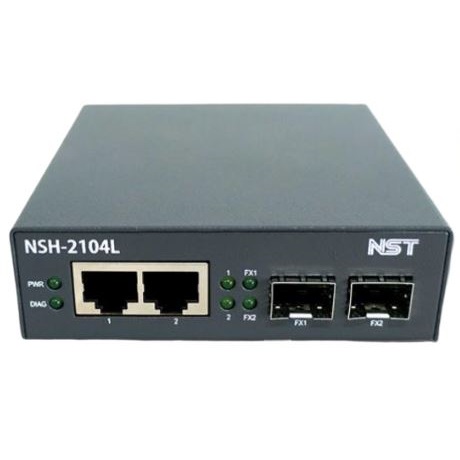

Bộ chuyển đổi quang điện NSH-2104L: 2 Cổng mạng 1000 + 2 cổng quang SFP 1000
2 Ports 10/100/1000Base-T
2 Ports 1000Base-X SFP
Thông số kỹ thuật:
|
2 Ports 10/100/1000Base-T
2 Ports 1000Base-X SFP
|
|
none(WEB)
|
|
20Gbps
|
|
14.8Mpps
|
|
IEEE 802.3x and Back-Pressure Flow Control
|
|
4,096
|
|
Tag-base VLAN (IEEE 802.1Q)
Port and protocol based VLAN
|
|
8Kbps step per Port
|
|
Prohibited MAC address per Port
|
|
8 Physical Queues per Port
Strict Priority(SP) and Weighted Fair
Queue(WFQ), or mixed Packet Scheduling
QoS remarking for 802.1p and DSCP (IPv4/v6)
|
|
Port Mirroring
Broadcast/Multicast Storm Control
IEEE 802.1x
Link aggregation (IEEE 802.3ad), 4 Groups
Packet Priority (IEEE 802.1p)
Automatic Loop Detection and Isolation
IEEE 802.3az Energy Efficient Ethernet (EEE)
IGMP v1/v2/v3 Snooping
|
|
Web based Management, RMON
|
|
External Power Adapter (DC 5V 2A)
|
|
100(W) x 110(D) x 30(H) mm
|
|
-20°C ~ 70°C
|
|
-40°C ~ 80°C
|
|
10% ~ 90%(non Condensing)
|
|
Power, DIAG, Port Link/Act
|

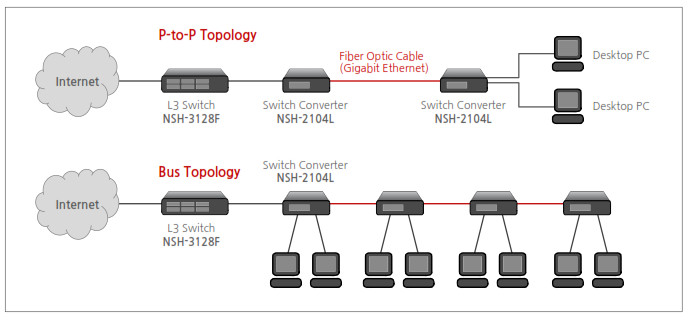

Sơ đồ kết nối:
