Item
|
Descriptions
|
Item
|
Descriptions
|
|
|

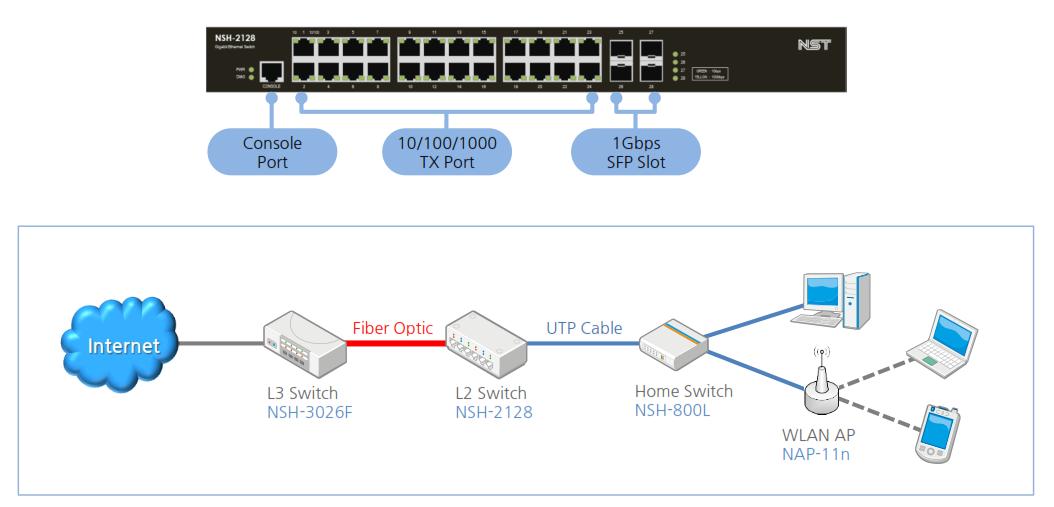

인터페이스 수
|
24 Ports 10/100/1000Base-T
|
기능
|
Port Mirroring 기능 지원 (4 IDs)
|
|
|
4 Ports 1000Base-X 또는 100Base-FX SFP Slot
|
Link aggregation (IEEE 802.3ad), 8 Groups
|
|
|
표준방식
|
IEEE 802.1q, IEEE 802.1d, IEEE 802.1p
|
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
|
|
|
IGMP v2/v3, MLD v1/v2 Snooping 지원
|
|
|
Console Port
|
RJ-45 to RS-232
|
|
|
Processor
|
MIPS32 500MHz
|
Jumbo Frame (9,216 Bytes) 지원
|
|
|
Flash
|
16MB
|
STP(IEEE 802.1D), RSTP(IEEE 802.1w), MSTP(IEEE 802.1s)
|
|
|
Memory
|
128MB DDR2 SDRAM
|
|
|
Port Security, DoS, Broadcast Strom control
|
|
|
Switching Capacity
|
56Gbps
|
|
|
Bridge Function
|
Filtering, Forwarding, Learning
|
IEEE 802.1x
|
|
|
Switching 방식
|
Store and Forward
|
L2/L3/L4 기반 ACL (DMAC, SMAC, Ether-Type)
|
|
|
Flow Control 방식
|
IEEE 802.3x and Back-Pressure Flow Control
|
Rate Limit Control 기능 제공
|
|
|
MAC Address
|
8,192개
|
|
|
LLDP (Link Layer Discovery Protocol) 기능 제공
|
|
|
VLAN Functions
|
Tag-base VLAN (IEEE 802.1Q)
|
|
|
Copper Cable Diagnostic
|
|
|
Port-base VLAN, Port and protocol based VLAN
|
|
|
Management
|
CLI, Telnet, Web based Management
|
정격전원
|
AC90~250V, 50Hz/60Hz, 전원이중화(옵션)
|
|
|
SNMPv1/v2c/v3, MIB I/II
|
소비전력
|
Max. 30W
|
|
|
Rate Limit Control
|
각 포트별 16Kbps 단위 대역폭 속도 조절가능
|
크기
|
440(W) x 247(D) x 44(H) mm
|
|
|
MAC Filtering
|
Port별로 접근제한 MAC Address 입력하여 관리
|
|
|
중량
|
3.0kg
|
|
|
QoS
|
8 Physical Queues per Port
|
|
|
동작온도
|
-25°C ~ 60°C
|
|
|
Strict Priority(SP) and Weighted Fair Queue(WFQ), Weighted Round Robin (WRR) Packet Scheduling
|
|
|
보관온도
|
-40°C ~ 70°C
|
|
|
습도
|
10% ~ 90%(non Condensing)
|
|
|
QoS remarking for 802.1p and DSCP (includes IPv4/IPv6)
|
|
|
LED
|
Power, Link / ACT, Speed
|
|
