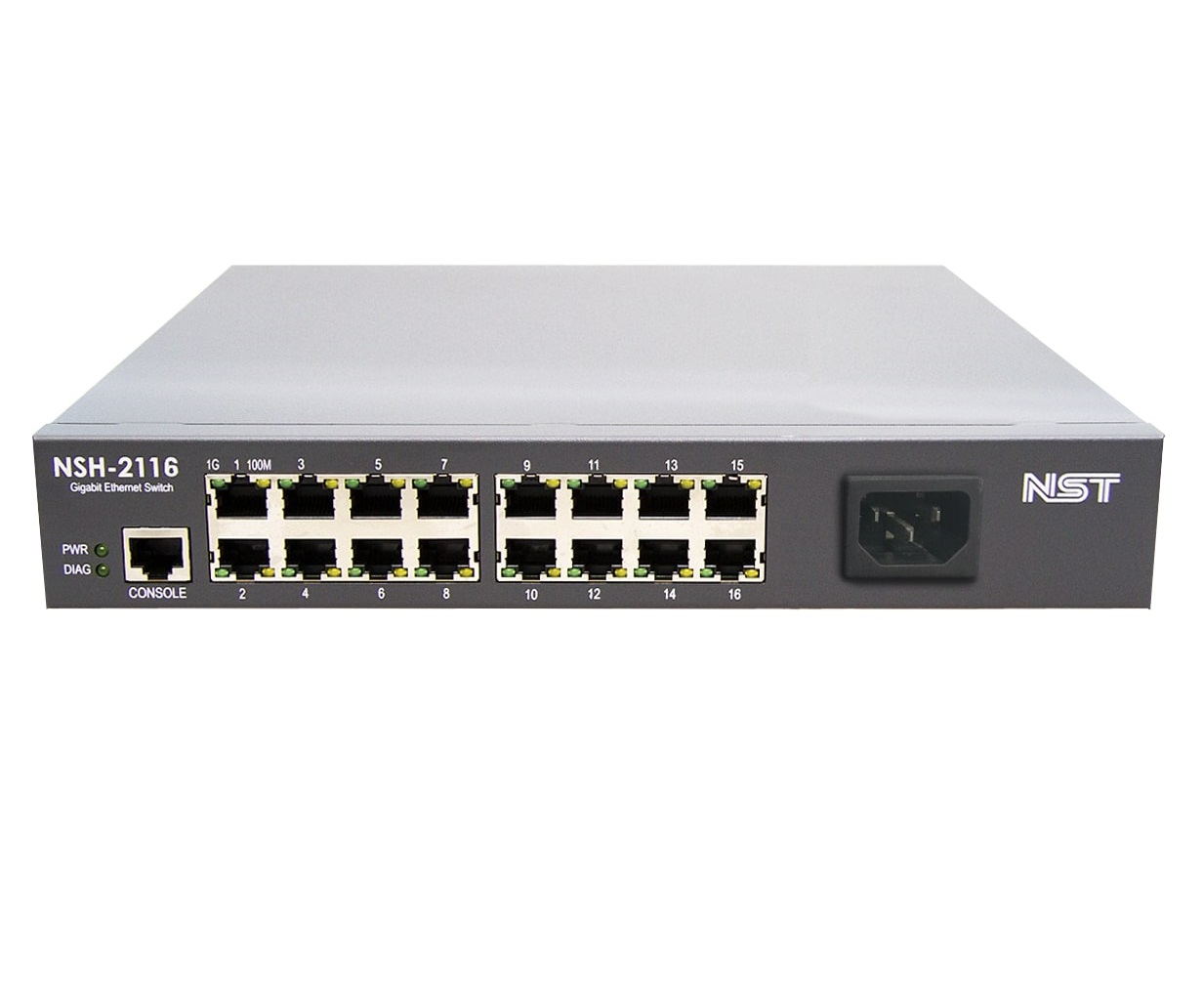

NSH-2116

Interface

16-Port 10/100/1000Base-T

Console Port

RJ-45 to RS-232

Processor

MIPS32 500MHz

Flash

16MB

Memory

128MB DDR2 SDRAM

Backplane

32Gbps

Flow Control

IEEE 802.3x and Back-Pressure Flow Control

VLAN

Tag-base VLAN (IEEE 802.1Q)
Port-base VLAN, Port and protocol based VLAN

Management

CLI, Telnet, SSH, Web based management
SNMPv1/v2c/v3, MIB I/II

QoS

8 Physical Queues per Port
Strict Priority(SP) and Weighted Fair Queue(WFQ), Weighted Round Robin(WRR) Packet Scheduling
QoS remarking for 802.1p and DSCP (IPv4/IPv6)

Features

Rate Limit Control
MAC Filtering
Broadcast Strom control
Port Mirroring
Link aggregation (IEEE 802.3ad), 8 Groups
STP(IEEE 802.1D), RSTP(IEEE 802.1w), MSTP(IEEE 802.1s)
L2/L3/L4 based ACL (DMAC, SMAC, Ether-Type)
IGMP v2/v3, MLD v1/v2 Snooping
Port Security, DoS, Broadcast Strom control
IEEE 802.1x
IEEE 802.3az Energy Efficient Ethernet (EEE)
DHCP Snooping
Jumbo Frame (9,216 Bytes)
LLDP (Link Layer Discovery Protocol)
Copper Cable Diagnostic
RMON

Power

AC90~250V, 50Hz/60Hz

Power Consumption

Max. 13W

Size

290(W) x 180(D) x 44(H) mm

Weight

2.2kg

Operating Temperature

-25°C ~ 70°C

Storage Temperature

-40°C ~ 80°C

Humidity

10% ~ 90%(non Condensing)

LED

Power, Link/Act, Speed
