| Model number |

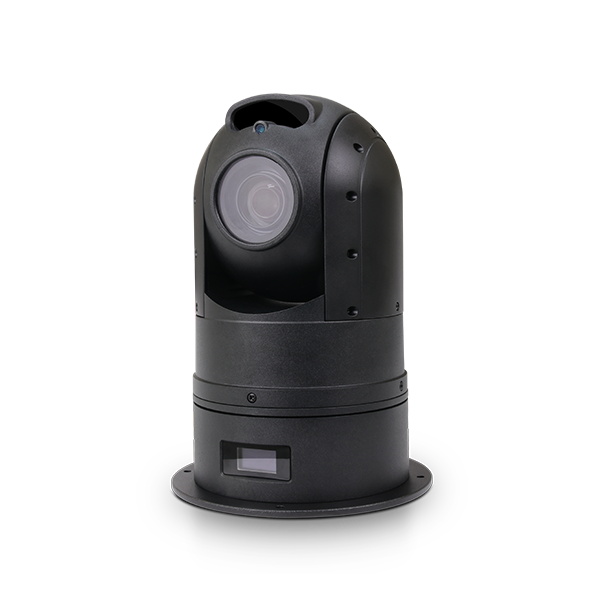

CMNS-230VH |
| Camera |
Sensor |
High performance low illumination
1/2.8" Progressive Scan CMOS sensor |
| Resolution |
1920*1080 @25/30 fps |
| Optical zoom |
32x |
| Focus lens |
F = 4.5~144mm |
| Iris |
F1.6~F3.5 |
| View angle |
Wide 67.8° Tele: 2.1° |
| Illumination |
Color 0.005 Lux |
| Black 0 Lux IR ON |
| WDR |
DWDR |
| Day-night mode |
ICR cut switch |
| Compression |
H.264/H.265 |
| Bit rate |
32Kbps-16Mbps |
| Frame rate |
1-25fps(50Hz) 1-30fps(60Hz) |
| Stream |
Support dual stream, main stream (1080P; 960P: 720P), sub stream (D1; VGA; CIF) |
| Storage |
Single card, maximum support 256G |
| Audio |
Audio input |
Optional |
| Compression standard |
G711 |
| Sampling Rate |
16K,32K,64K,128K |
| Protocol |
Onvif protocol, support to provide the bottom layer and assist in development |
| Input |
Built in 1CH video, 1CH audio |
| PTZ |
Pan range |
360° continuous rotation |
| Tilt range |
-30°-90° |
| Rotation speed |
pan control speed:100°/s, tilt control speed:60°/s |
| Preset |
255x |
| Patrol |
4x |
| Line scan |
support |
| Park function |
Support |
| IR distance |
infrared distance up to 80 meters |
| Network Protocols |
TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP,
PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, |
| User Interface |
IPC Control (IE, firefox, Chrome) |
| Ethernet |
10/100M, RJ45 interface |
| Alarm |
Input |
1CH |
| Output |
1CH |
| Protection Grade |
IP66,alloy material |
| Vehicle based PT structure |
Shockproof, anti-vibration, anti-corrosion |
| Working temperature |
-40~60° |
| Working humidity |
0~95% No condensation |
| Product dimension |
Φ125*210mm + 10% |
| Weight |
2.3 kg |
| Power consumption |
DC12V/1.8A-3A/21.6W |
