AI SoC and high-sensitive Image Sensor
By applying AI SoC and Sony STARVIS CMOS sensor, the bright and clear image quality is implemented even in
low-light environments and reliable AI results are provided
Smart Tracking
Deep-learning based engine can detect objects (person / vehicle)
If illegal intrusion is detected, follow up with PTZ camera till it is out of the limited area
Stealth Technology
Stealth driving technology allows smooth rotation and PTZ operation without vibration
H.265 supports
By high efficient compressing images, it can save up to 80% of bandwidth and storage space compared to H.264
ONVIF supports
ONVIF, a standard protocol, for compatibility and interoperability with third-party software and systems
Intelligent Network Camera

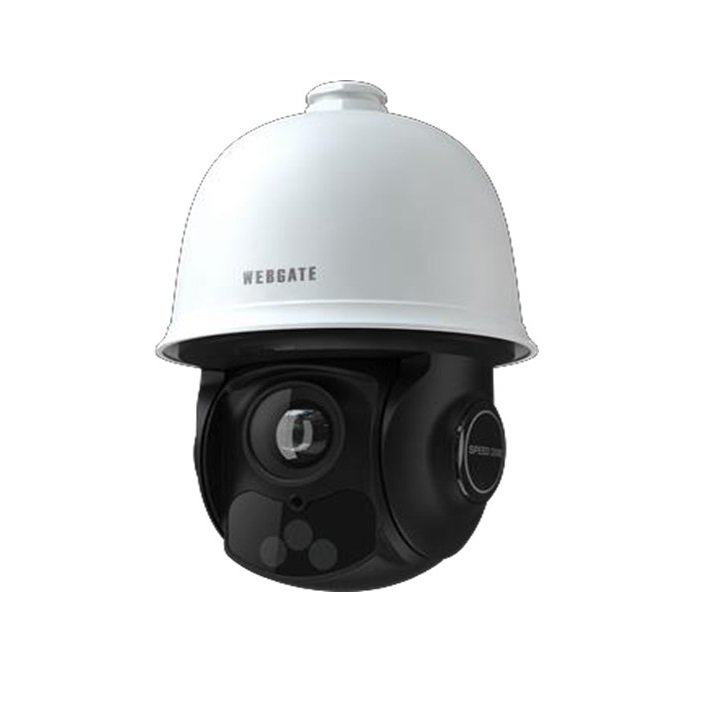

NT2100PT-IR-Z32W
Camera Module
Image Sensor 1/2.8″ progressive scan CMOS
Mini. Illumination
Color：0.005Lux @ (F1.65，AGC ON)
B/W：0.001Lux @ (F1.65，AGC ON)
0 Lux with IR
Image setting
Flip, Mirror, Saturation, Brightness, Contrast, Sharpn
ess, AGC, and AWB adjusted by client software / bro
wser
Shutter Speed 1/1 s – 1/10,000 s
White Balance Auto / Manual / Indoor / Outdoor
Gain Auto / Manual
Day & Night IR Cut filter
Privacy Mask
4 Programmable privacy masks
3D DNR
Auto / Manual
Image Enhancement
BLC, HLC, WDR(120 dB)
Defog
Electronic
EIS
YES
Picture overlay
Logo picture could be overlaid on video with
128×128pixels, 24bits BMP format
Lens
Focus length f=4.5-144mm lens, 32x optical
Zoom Speed Approx. 4.5s (optical zoom, wide-tele)
Field of View
Horizontal:60.° to 2.3°(wide-tele)
Vertical: 40.5° to 1.4°(wide-tele)
Diagonal: 68.0° to 2.7°(wide-tele)
Working distance wide: 1.0m ~ INF; tele: 1.5m ~ INF
Aperture Range F1.65 ~ F4.4 (wide-tele)
PTZ
Pan Range 360°endless
Pan speed
Configurable, from 0.1~80°/s
Max Preset speed: 150°/s
Tilt Range From -3° to 90°
Tilt Speed
Configurable, from 0.1°~ 80°/s,
Max Preset speed: 120°/s
Proportional Zoom Yes
Preset 360
Cruise 8 cruises, up to 16 presets for each cruises
Track 4 tracks, record time over 3 minutes for each track
Power off memory Support
Action mode Preset / Cruise / Track / Auto Scan / Random Scan
PTZ Position Display Support
Schedule Task
Preset / Cruise / Track / Auto Scan / Random Scan /
Dome reboot
IR
IR Distance 150m
Smart IR Yes
Network
Max Resolution 1920×1080
Main stream 1920×1080 ,1280×720 25/30fps
Sub stream
25fps (704×576, 640x480, 352×288)
30fps (704×480, 640x480, 352×240)
Third Stream
25fps (1920x1080, 1280x960, 1280x720, 704×576
, 640x480, 352×288)
30fps (1920x1080, 1280x960, 1280x720, 704×480,
640x480, 352×240)
Video compression Smart H.265+ /H.265/ H.264 / MJPEG
Audio compression G.711 A / U
Audio Enhancement NO
Protocols
HTTP, HTTPS, Ipv4/Ipv6, 802.1x, QoS, FTP, SMTP, UP
nP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/I
P, UDP, IGMP, ICMP,DHCP, PPPoE
Simultaneous
live view
Up to 6 channels
User / Host
Up to 16 users, 3 levels: Administrator, Advanced Us
er and Normal User
Security Measures
User authentication (ID and PW), Host authenticatio
Smart Features
n (MAC address)
HTTPS encryption, IEEE802.1x port-based network
access control; IP address filtering
Basic event
Motion detection, video tampering alarm, exception
(network disconnected, IP address conflict, SD full, S
D error), defocus detection
Face recognize Default off, max 15 human faces per second.
Face compare Default off
Smart Detection
Intrusion detection, Line crossing detection, Region
entrance detection, Region exiting detection, Unatte
nded baggage detection, Object removal detection,
Scene change detection, Support alarm triggering b
y human or vehicle, filtering flag/animal.
Smart Tracking
Manual Tracking, Auto Tracking
(human or vehicle by software setting)
System Integration
Alarm Linkage
Alarm actions, such as Preset, Cruise, Track, Memor
y Card Video Record, Trigger Recording, Notify Surv
eillance Center, Upload to FTP/Memory Card, Send E
mail, etc.
Network Interface
1 RJ45 10M/100M Adaptive Ethernet
(Support PoE 802.3.at)
Storage
SD card slot inside, support micro SD/SDHC/SDXC,
up to 256G
Web Browser IE8-11,Chrome41.0-44, irefox30.0-51,Safari8.0-11
System Integration
Power
DC24V, AC24V or PoE+ (802.3.at, class 3),
(Max 30W, include IR on, Heater on, Fan working)
Working condition
-30°C ~ 60°C (-22°F ~ 140°F),
90%RH less (non-condensing), Cold start at – 25°C
Storage condition -40°C ~ 65°C ; ≤ 95% RH
Protection
IP66 Level, 6000V Lightning Protection,
Surge Protection and Voltage Transient Protection
Material Aluminum Alloy + Plastic
Dimensions Φ 209mm × 328mm ( 8.22′ Φ × 12.91′)
Weight Approx. 3.8 Kg (8.38 lb.)
Certification KC, CE, FCC
* Specifications are subject to change without notice for product improvement.
