Camera
|
|
Model
|

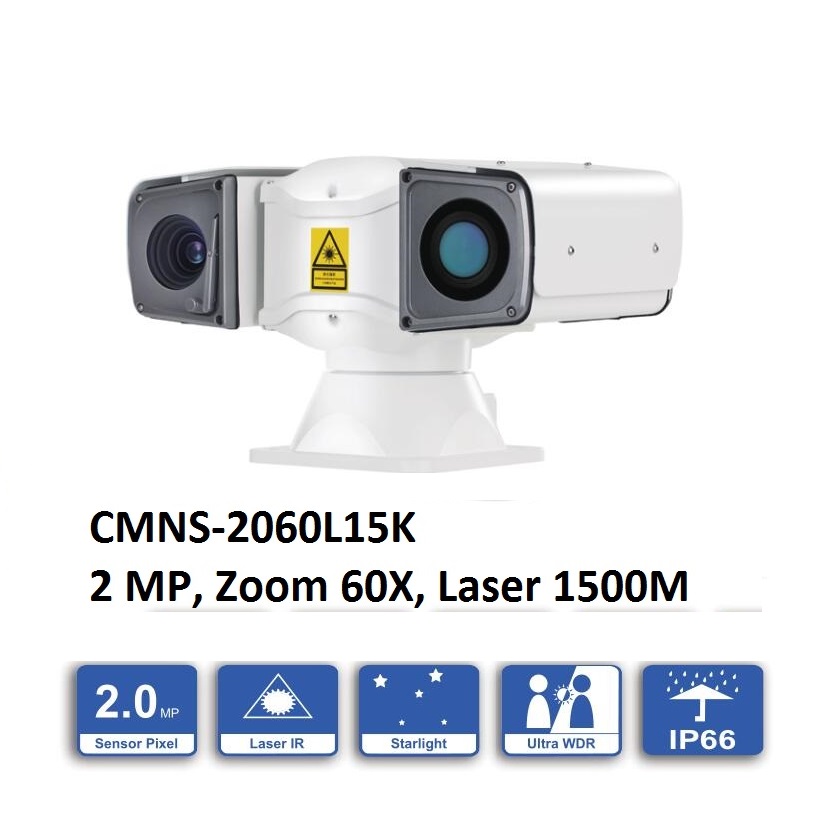

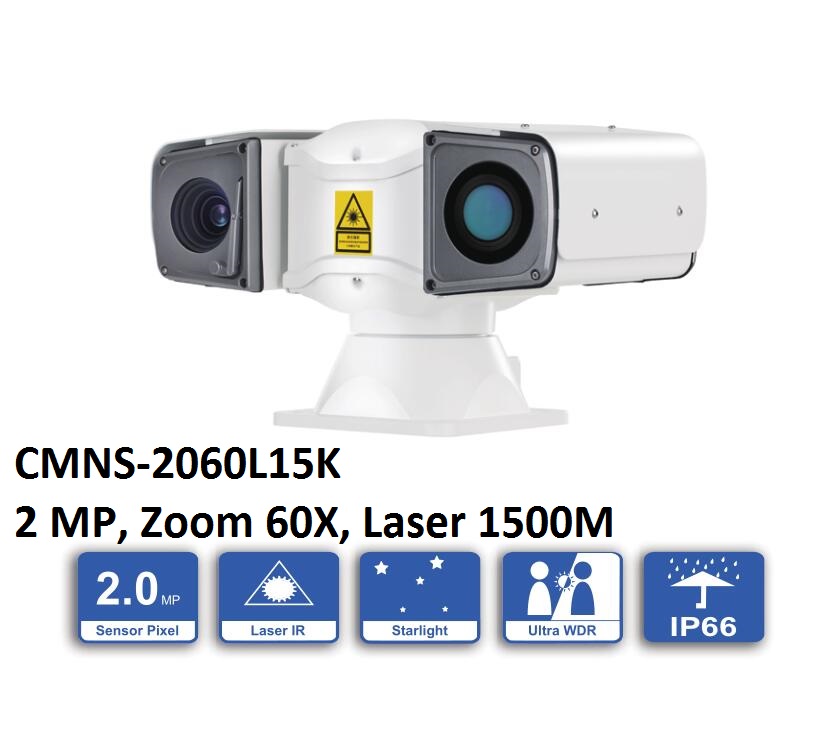

CMNS-2060L15K
|
|
Image Sensor
|
1/2.8'' Progressive Scan CMOS
|
|
Pixels
|
2.0 Megapixel
|
|
Min. Illumination
|
Color: 0.001Lux @ (F1.2, AGC ON)
|
|
B/W: 0.0001Lux @ (F1.2, AGC ON); 0Lux with IR
|
|
Shutter
|
Speed 1 ~ 1/30,000S
|
|
Day / Night
|
Auto (ICR) / Color / B/W
|
|
Wide Dynamic Range
|
Ultra WDR, >=120dB
|
|
S/N Ratio
|
>55dB
|
|
White Balance
|
Auto / Manual
|
|
Gain Control
|
Auto / Manual
|
|
Backlight Compensation
|
Off / WDR / BLC / HLC
|
|
Lens
|
|
Focal Length
|
6.4 ~ 384mm, 60x optical
|
|
Zoom Speed
|
Approx 4s (Optical)
|
|
Angle of View
|
43.8°~ 1° (Wide~Tele)
|
|
Min. Object Distance
|
300 ~ 1500mm (Wide~Tele)
|
|
Max. Aperture Ratio
|
F1.6 (Wide) / F6.0 (Tele)
|
|
Focus Control
|
Auto / Manual / Semi-Automatic
|
|
Laser
|
|
Laser Distance
|
1550m
|
|
Laser Intensity
|
Automatically adjust according to zoom ratio
|
|
Pan and Tilt
|
|
Pan / Tilt Range
|
360° Endless / - 85° ~ 85° (Auto Flip)
|
|
Pan / Tilt Speed
|
Pan manual speed: 0.1° ~ 120°/s; Pan preset speed: 120°/s
|
|
Tilt manual speed: 0.1° ~ 30°/s; Tilt preset speed: 100°/s
|
|
Proportional Zoom
|
Pan / Tilt speed can be adjusted automatically according to zoom multiples
|
|
Preset
|
256
|
|
Patrol
|
8 Patrols scheme, up to 32 presets per patrol
|
|
Pattern Scan
|
4 Scan paths, each path can record 10 minutes of operation path
|
|
Power-off Memory
|
Power-off memory / Power-on recovery
|
|
Auto Guard
|
Path / Preset / Pan scan
|
|
PT Limit
|
Manual / Scan / Pan
|
|
3D Positioning
|
PTZ control with mouse click and drag
|
|
Wiper
|
Supported
|
|
Wiper
|
Supported
|
|
Video
|
|
Compression Format
|
H.265 / H.264 / MJPEG
|
|
Image Resolution
|
Main stream: 1080p
|
|
Secondary stream: D1
|
|
Frame Rate
|
Main stream: 1080p@60fps
|
|
Secondary stream: D1@30fps
|
|
Bitrate
|
32kbps ~ 16Mbps
|
|
Bitrate Control
|
VBR / CBR
|
|
Multi stream
|
Supported
|
|
Caption
|
Date and time / Alarm / Direction / Customized
|
|
Privacy Masking
|
Up to 4 zones
|
|
Motion Detection
|
Up to 4 zones
|
|
Video Freeze
|
Supported
|
|
ROI
|
Supported
|
|
Digital Noise Reduction
|
3D noise reduction
|
|
Digital Defog
|
Supported
|
|
Image Flip
|
Flip / Mirror
|
|
Audio
|
|
Compression
|
G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726
|
|
Bitrate
|
32kbps ~ 64kbps
|
|
Audio Function
|
Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
|
|
Network
|
|
Network Protocols
|
802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
|
|
User Interface
|
IPC Control (IE, Firefox, Chrome)
|
|
Max. User Access
|
Max. 10 Users (include 2 internal)
|
|
Application Programming
|
ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
|
|
Automatic Network
Replenishment (ANR)
|
Supports
|
|
Alarm
|
|
Alarm Triggers
|
Alarm input / Network disconnect / Disk full / Disk error
|
|
Intelligent
|
Motion detection / Tampering / Guard line / Enter guard area / Exit guard area /
Object left / Object removal / Gathering / Audio surge
|
|
Alarm Events
|
Alarm report / Recording / Text overlay / Snapshot / External output / Email notice
/ Acoustic alarm
|
|
Interfaces
|
|
Ethernet
|
10/100M, RJ45 interface
|
|
Audio In / Out
|
1 x Line in / 1 x Line out
|
|
Alarm In / Out
|
1 x Input / 1 x Output
|
|
Video Out
|
1 x BNC, 1.0V [p-p] / 75Ω
|
|
Memory Slot
|
Built-in Micro SD card (optional), up to 128GB
|
|
Environmental
|
|
Operating Temperature
|
-40°C ~ 70°C / -40°F ~ 158°F
|
|
Operating Humidity
|
10% ~ 95%
|
|
Protection Level
|
IP66, TVS 6000V lightning protection, surge protection and voltage transient
protection
|
|
Electrical
|
|
Power
|
24V AC / 3A (Power adapter included)
|
|
Power Consumption
|
Max. 70W (Laser on)
|
|
Mechanical
|
|
Weight
|
10kg / 22lb (Gross Weight)
|
|
Dimensions
|
404 × 222.6 × 243.5mm / 15.9'' x 8.76'' x 9.59''
|
