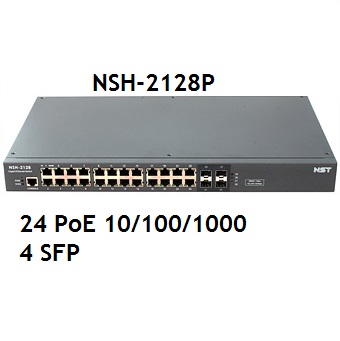

Managed, 24-ports 10/100/1000Base-T PoE(802.3af/at), 4-ports 1000Base-X SFP, Total 430W 24-Port 10/100/1000Base-T PoE 4-Slot 1Gbps SFP IEEE 802.3af/at Standard PD Classification PD(Power Device) Detection Zero Current Detection Over Current Protection Internal MOSFET with Thermal Protection Auto Restart Fault Management AC and DC Disconnect Sensing Robust Short-Circuit Protection
CÔNG TY TNHH SMARTTECH VIỆT NAM
ĐT/Zalo: 0989964161 - 0326180066
item
Descriptions
Interface
24-Port 10/100/1000Base-T PoE 4-Slot 1Gbps SFP
Console Port
RJ-45 to RS-232
Processor
MIPS32 500MHz
Flash
16MB
Memory
128MB DDR2 SDRAM
Backplane
56Gbps
Features - PoE
IEEE 802.3af/at Standard PD Classification PD(Power Device) Detection Zero Current Detection Over Current Protection Internal MOSFET with Thermal Protection Auto Restart Fault Management AC and DC Disconnect Sensing Robust Short-Circuit Protection
Flow Control
IEEE 802.3x and Back-Pressure Flow Control
VLAN
Tag-Base VLAN (IEEE 802.1Q) Port and protocol based VLAN
Management
CLI, Telnet, Web based management SNMPv1/v2c, MIB I/II
QoS
8 Physical Queues per Port Strict Priority(SP) and Weighted Fair Queue(WFQ), Weighted Round Robin(WRR) Packet Scheduling QoS remarking for 802.1p and DSCP (IPv4/IPv6)
정격전원
AC 90~250V, 50~60Hz
크기
440(W) x 247(H) x 44(D) mm
중량
3.0kg
동작온도
0°C ~ 50°C
보관온도
-40°C ~ 80°C
습도
10% ~ 90%(non Condensing)
LED
Power, Link/Act, PoE
