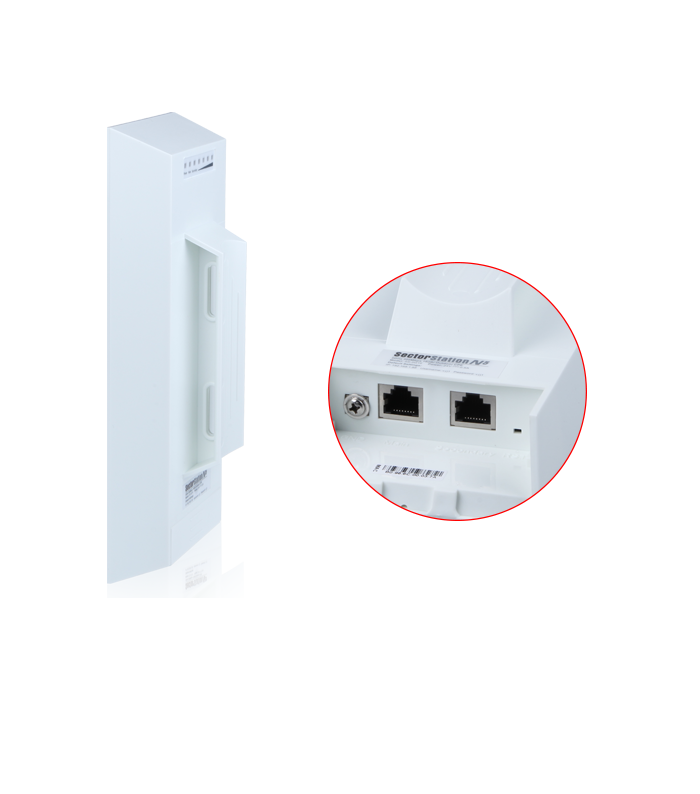

Thiết bị truyền dẫn không dây tốc độ 300Mbps SS5G16WF
Thiết bị truyền dẫn không dây tốc độ 300Mbps SS5G16WF

Thiết bị truyền dẫn không dây tốc độ 300Mbps SS5G16WF

Thương hiệu: n/a
Mã sản phẩm: SS5G16WF
Giá: Liên hệ: 0989 96 41 61 - 0326 1800 66

Thiết bị kết nối không dây, tầm xa 5 km, băng thông 300Mbps.

Sử dụng kết nối mạng giữa các Tòa nhà, Nhà xưởng, Hệ thống camera,....

Sector Station N5 5GHz 300Mbps Outdoor CPE

The Sector Station N5 (SS5G16WF) is a new generation wireless product conforming to IEEE802.11a/n technology. Using Qualcomm Atheros AR9344 high performance processor with 2x2 MIMO technology the Sector Station N5 delivers higher speeds and more long distance wireless link transmission than ever before.

SS5G16WF Features:

  • Friendly webpage management, easy and efficient configuration
  • Two different Web UI styles
  • Setup in JUST one minute
  • Browser controlled Ethernet port
  • Supports unlicenced frequency bands from 4920MHz to 6100MHz
  • Adjustable power output
  • Patented antenna technology

SS5G16WF Applications:

  • Point-to-point and Point-to-Multipoint wireless communication
  • Wireless Video Surveillance
  • Enterprise wireless LAN interconnection
  • Mobile operators WISP large customer access system
  • Wi-Fi wireless city coverage

CÔNG TY TNHH SMARTTECH VIỆT NAM

ĐT/Zalo: 0989964161  - 0326180066





Product Specifications

Product code

SS5G16WF

Wireless standards

802.11a/n

Frequency Band

5GHz

CPU working frequency

560MHz

Wireless chip model

AR9344

TX Power

27dBm

Receiving Sensitivity

-95dBm

Size of RAM

64 MB

Flash

8MB

10/100 Ethernet ports

2

Antenna gain

16dBi

Isolation

>23dB

Antenna Beamwidth

60°

DC Ground

yes

Power Supply

24 V,0.5A

Max Power consumption

8W

Weight

0.4kg

Dimension

260x100x60mm

Operating temperature

-40℃ to +70℃

Enclosure Characteristics

Outdoor UV Stabilized Plastic

Mounting Kit

Pole Mounting Kit Included

Operating System

OS
