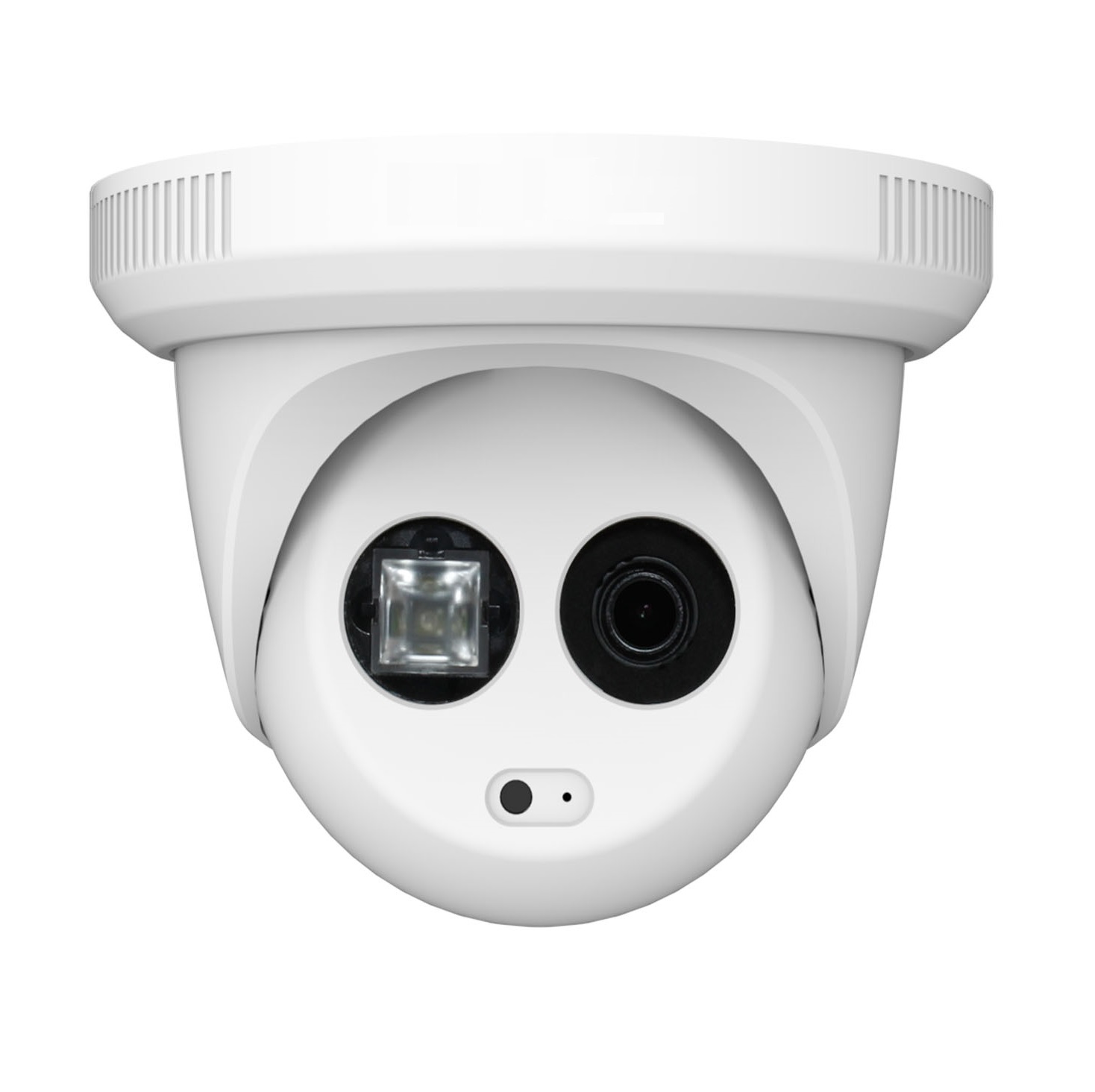

| Model |
CMND-2040PL |
| Camera |
Sensor |
1/2.45" 4.0Mega Progressive Scan CMOS |
| Min.Illumination |
Color: 0.01Lux@F1.2,B&W: 0Lux（IR ON） |
| Lens |
2.8/3.6mm Megapixel |
| IR Range |
30m, Support Smat IR |
| Exposure Mode |
High brightness prefer/Low brightness perfer |
| Object Bright |
Value 0-255 |
| Electronic Shutter |
Auto（1/25s ~ 1/10000s） |
| Day / Night |
LDRSwitch / Color / B&W/Mixed Model |
| BufferTimes |
0-60 Second |
| DNR |
2D/3D DNR |
| Anti-Fog |
Support (ON/OFF) |
| WDR |
DWDR Value 0-255 |
| Image Mode |
Real/ Transparent |
| Color Mode |
Gorgeous/Standard |
| Image Adjustment |
Sharpness, Brightness, Saturation, Contrast Adjustable |
| Sharpness value |
Auto or Manual, Value 0-255 |
| Encode |
Video Encoding |
H.265/H.265+/H.264/H.264+/MJPEG |
| Max. Resolution |
Main Stream : 2560x1440/704×576@25/30fps/1280×720@25/30fps |
| Video Bitrate Control |
Support VBR / CBR, Video Bitrate Range 32Kbps~4Mbps |
| Interface |
Audio |
1 Built-in Mic ( Option) |
| Network Port |
1 RJ45 10M/100M Ethernet interface |
| Function |
Motion Detection |
Multiple Detection Zones, Variable Sensitivity Levels |
| Corridor Mode and ROI |
Support |
| Privacy Masking |
4 Zones for Privacy Masking |
| Snapshot |
Support JPEG, Resolution is the max encoding resolution |
| Security Features |
Support Password, Watermarking |
| Text Overlay |
Support（Channel Title, Time Title） |
| Alarm |
Support Network Anomaly, Mask Alarm and etc. |
| Intelligent Function |
Support Face Detection, Intrusion Detection, Object Missing/Left Detection, Through Fence
Detection, Retrograde Detection, Loitering Detection, Density Detection, Counting. |
| Mobile Phone App |
Support IOS and Android |
| Network Protocol |
TCP/IP；UDP；HTTP；DHCP；RTP/RTSP；DDNS；FTP；UPNP；SMTP |
| Protocol |
ONVIF |
General
Parameter |
Power Supply |
DC12V（±25%）/PoE(Optional). Power Consumption 4.5W Max. |
| Temperature |
-30℃ --＋60℃ , Humidity 10％--90％ |
| Install Type |
Ceiling Mounting . Protection Grade IP66 |
| Dimensions |
Φ122mm×93mm. Weight ~ 390g |
